Aircraft Automation Standard servo kit

R2,999.00

Categories: , , , , Product ID: 6937

Description

Product Specifications

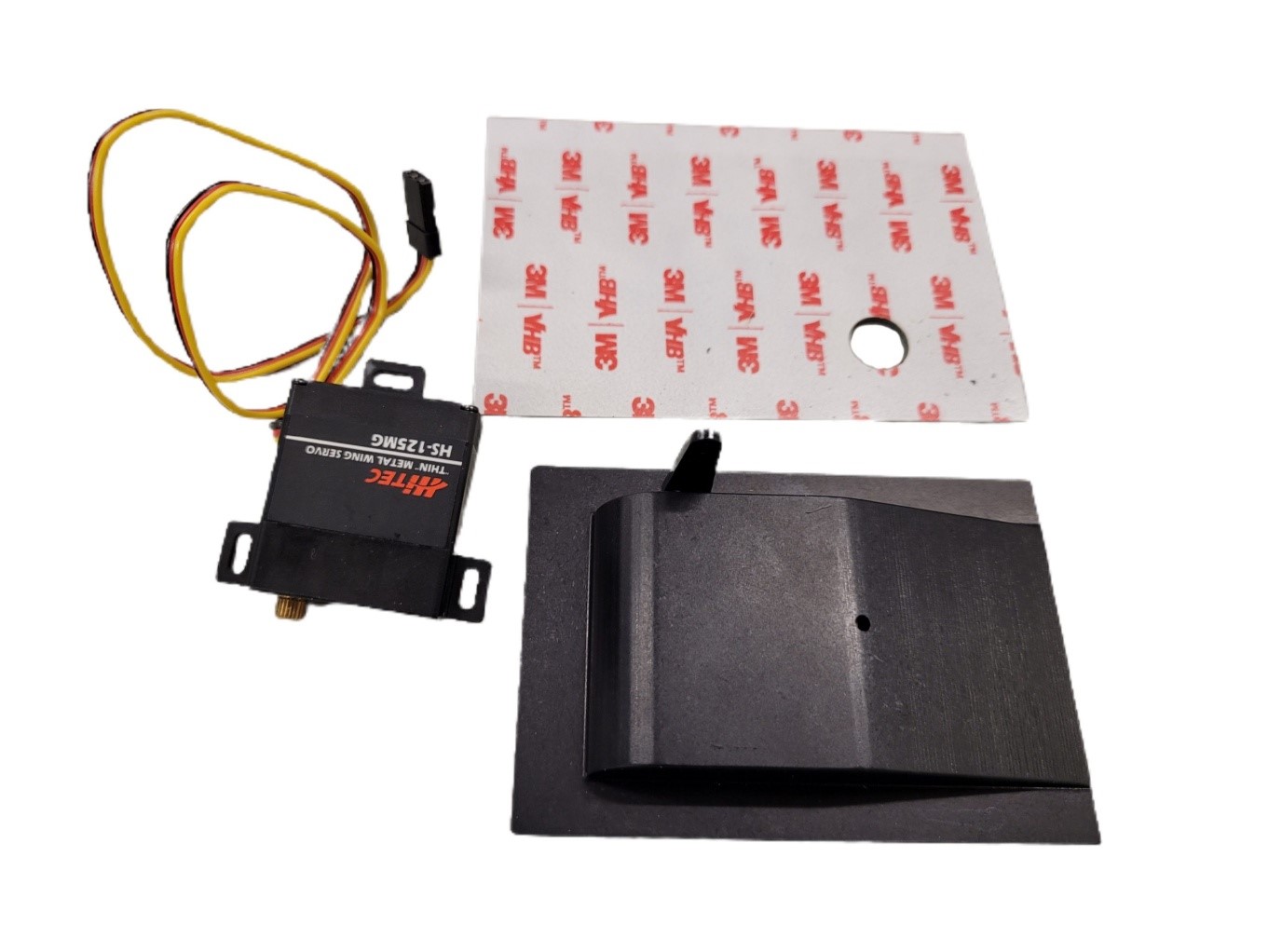

The Standard Servo Kit is the lightest of all our servos, the complete system only weighs 1.8 oz (51 grams).
It can be used to adhere, rivet, or screw a servo to the fixed part of the carbon fiber trim tab. It can also be mounted remotely to alleviate weight on the trailing edge of your Aileron/Elevator. The remote mount needs a 12 in Carbon fiber reinforced 2-56 push rod assembly.

Due to its light weight, we recommend it for fast airplanes where surfaces must be precisely balanced.
It is splash proof but not fully sealed. It can be installed beneath the Aileron/Elevator to protect it from rain. Best recommended for hangered aircraft.
For amphibians and unprotected aircraft an IP-67 Waterproof servo should be used.

SERVO FEATURES:
The analog HS-125MG is truly a super thin servo measuring 1.2 x 0.4 x 1.3. Featuring Hitec foots MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings.
Features
– Super thin wing servo
– 4 metal gears + 1 metal resin gear
– Dual ball bearings
– Gold-plated contacts
– long life potentiometer
– 3-Pole cored motor
Torque @ 4.8V 3 kg.cm
Torque @ 6.0V 3.5 kg.cm
Spline 25T
Speed @ 4.8V 0.17 sec/60°
Speed @ 6.0V 0.13 sec/60°
Weight 24g

Reviews

There are no reviews yet.

Be the first to review “Aircraft Automation Standard servo kit”
